Vibration Sensors: Ultimate Guide to Types of Vibration Sensors and Uses

Types of Vibration Sensors

There are several types of vibration sensors available in the market, each with its own advantages and limitations. The most common types of vibration sensors are:

1. Piezoelectric sensors
2. MEMS accelerometers
3. Piezoresistive sensors
4. Capacitive sensors
5. Eddy current sensors
6. Laser Doppler vibrometers

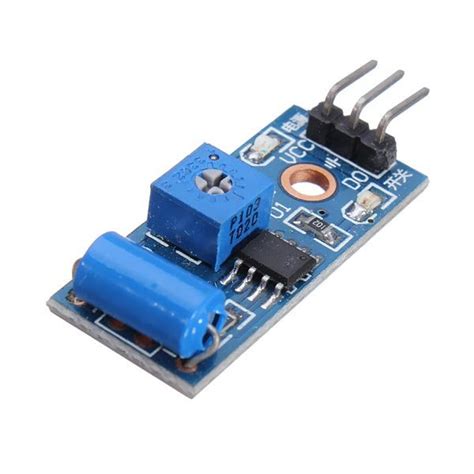

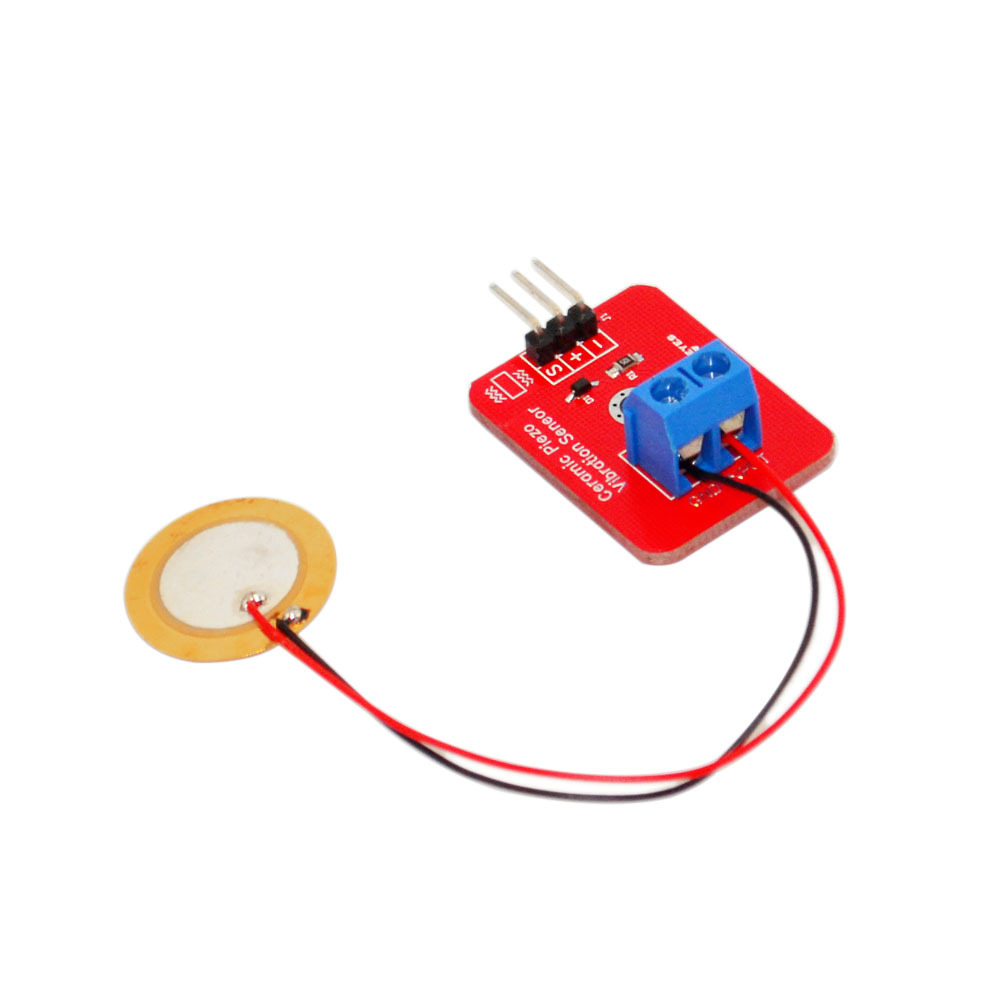

Piezoelectric Sensors

Piezoelectric sensors are the most widely used type of vibration sensor. They are based on the piezoelectric effect, which is the ability of certain materials to generate an electric charge when subjected to mechanical stress. Piezoelectric sensors are made of piezoelectric materials such as quartz, tourmaline, and certain ceramics.

When a piezoelectric sensor is subjected to vibration, the piezoelectric material generates an electric charge proportional to the applied force. This charge is then converted into an electrical signal using a charge amplifier or a voltage amplifier.

Piezoelectric sensors have several advantages, including:

• High sensitivity
• Wide frequency range (up to 10 kHz)
• Low noise
• Rugged construction
• Low power consumption

However, they also have some limitations, such as:

• Limited low-frequency response
• High impedance output
• Sensitivity to temperature changes

Piezoelectric sensors are commonly used in applications such as:

• Machine condition monitoring
• Structural health monitoring
• Vibration testing
• Seismic monitoring
• Acoustic emission testing

MEMS Accelerometers

MEMS (Micro-Electro-Mechanical Systems) accelerometers are a newer type of vibration sensor that have gained popularity in recent years. They are based on the same principle as traditional accelerometers but are much smaller in size and can be fabricated using standard semiconductor manufacturing processes.

MEMS accelerometers consist of a proof mass suspended by springs within a frame. When the sensor is subjected to vibration, the proof mass moves relative to the frame, and this movement is detected using capacitive, piezoresistive, or piezoelectric sensing techniques.

MEMS accelerometers have several advantages, including:

• Small size (typically less than 5 mm)
• Low cost
• Low power consumption
• High sensitivity
• Wide frequency range (up to 10 kHz)
• Good temperature stability

However, they also have some limitations, such as:

• Limited dynamic range
• Susceptibility to shock and overload
• Sensitivity to electromagnetic interference

MEMS accelerometers are commonly used in applications such as:

• Condition monitoring of rotating machinery
• Structural health monitoring
• Automotive safety systems (e.g., airbag deployment)
• Consumer electronics (e.g., smartphones, gaming controllers)
• Wearable devices (e.g., fitness trackers)

Piezoresistive Sensors

Piezoresistive sensors are similar to piezoelectric sensors in that they convert mechanical stress into an electrical signal. However, instead of generating an electric charge, they change their electrical resistance when subjected to mechanical stress.

Piezoresistive sensors are made of materials such as silicon, germanium, and certain polymers that exhibit the piezoresistive effect. When a piezoresistive sensor is subjected to vibration, the mechanical stress causes a change in the material’s electrical resistance, which can be measured using a Wheatstone bridge circuit.

Piezoresistive sensors have several advantages, including:

• High sensitivity
• Wide frequency range (up to 50 kHz)
• Good low-frequency response
• Low impedance output
• Good temperature stability

However, they also have some limitations, such as:

• Limited dynamic range
• Susceptibility to electromagnetic interference
• Sensitivity to temperature changes

Piezoresistive sensors are commonly used in applications such as:

• Pressure sensing
• Force sensing
• Acceleration sensing
• Vibration sensing

Capacitive Sensors

Capacitive sensors are based on the principle of capacitance, which is the ability of two conductors separated by an insulator to store an electric charge. When a capacitive sensor is subjected to vibration, the distance between the two conductors changes, causing a change in capacitance that can be measured using an oscillator circuit.

Capacitive sensors have several advantages, including:

• High sensitivity
• Wide frequency range (up to 100 kHz)
• Low power consumption
• Good temperature stability
• Ability to measure both static and dynamic displacements

However, they also have some limitations, such as:

• Limited dynamic range
• Susceptibility to electromagnetic interference
• Sensitivity to moisture and contaminants

Capacitive sensors are commonly used in applications such as:

• Displacement sensing
• Proximity sensing
• Vibration sensing
• Pressure sensing
• Accelerometers

Eddy Current Sensors

Eddy current sensors are based on the principle of electromagnetic induction. They consist of a coil of wire that generates a high-frequency electromagnetic field. When a conductive target, such as a metal shaft, is brought close to the sensor, the electromagnetic field induces eddy currents in the target. These eddy currents generate their own electromagnetic field that opposes the field generated by the sensor coil, causing a change in the coil’s impedance that can be measured.

Eddy current sensors have several advantages, including:

• Non-contact measurement
• High sensitivity
• Wide frequency range (up to 100 kHz)
• Good temperature stability
• Ability to measure both static and dynamic displacements

However, they also have some limitations, such as:

• Limited range (typically less than 10 mm)
• Susceptibility to electromagnetic interference
• Sensitivity to target material properties

Eddy current sensors are commonly used in applications such as:

• Displacement sensing
• Vibration sensing
• Thickness measurement
• Crack detection
• Bearing wear monitoring

Laser Doppler Vibrometers

Laser Doppler vibrometers (LDVs) are a type of non-contact vibration sensor that uses laser interferometry to measure the velocity and displacement of a vibrating surface. LDVs work by directing a laser beam onto the surface of interest and measuring the Doppler shift of the reflected light, which is proportional to the velocity of the surface.

LDVs have several advantages, including:

• Non-contact measurement
• High spatial resolution
• Wide frequency range (up to 1 MHz)
• High sensitivity
• Ability to measure both in-plane and out-of-plane vibrations

However, they also have some limitations, such as:

• High cost
• Sensitivity to surface properties (e.g., reflectivity, roughness)
• Susceptibility to environmental factors (e.g., temperature, humidity)
• Requires line of sight to the target surface

LDVs are commonly used in applications such as:

• Structural health monitoring
• Automotive testing
• Aerospace testing
• MicroElectronics Testing
• Biomedical research

Factors to Consider When Selecting a Vibration Sensor

When selecting a vibration sensor for a particular application, there are several factors to consider, including:

1. Frequency range: The sensor should have a frequency range that covers the expected range of vibrations in the application.
2. Sensitivity: The sensor should have a sensitivity that is appropriate for the expected amplitude of vibrations in the application.
3. Dynamic range: The sensor should have a dynamic range that can accommodate the expected range of vibration amplitudes in the application.
4. Environmental factors: The sensor should be able to withstand the expected environmental conditions in the application, such as temperature, humidity, and electromagnetic interference.
5. Size and weight: The sensor should be small and lightweight enough to be mounted on the structure or machine of interest without affecting its performance.
6. Cost: The sensor should be cost-effective for the application, considering the expected benefits of vibration monitoring.

Vibration Sensor Selection Guide

To help select the appropriate vibration sensor for a particular application, the following table provides a comparison of the different types of vibration sensors based on their key characteristics:

Sensor Type	Frequency Range	Sensitivity	Dynamic Range	Temperature Stability	Cost
Piezoelectric	Up to 10 kHz	High	High	Poor	Moderate
MEMS Accelerometer	Up to 10 kHz	High	Moderate	Good	Low
Piezoresistive	Up to 50 kHz	High	Moderate	Moderate	Moderate
Capacitive	Up to 100 kHz	High	Moderate	Good	Moderate
Eddy Current	Up to 100 kHz	High	Moderate	Good	High
Laser Doppler Vibrometer	Up to 1 MHz	Very High	Very High	Good	Very High

FAQ

1. What is a vibration sensor?

A vibration sensor is a device that converts mechanical vibrations into an electrical signal that can be measured and analyzed. Vibration sensors are used to monitor the health and performance of machines, structures, and other systems by detecting changes in their vibration characteristics.

2. What are the different types of vibration sensors?

The different types of vibration sensors include piezoelectric sensors, MEMS accelerometers, piezoresistive sensors, capacitive sensors, eddy current sensors, and laser Doppler vibrometers. Each type of sensor has its own advantages and limitations, and the choice of sensor depends on the specific application and requirements.

3. What are the advantages of using vibration sensors?

Vibration sensors offer several advantages, including:

• Early detection of faults and failures in machines and structures
• Improved safety and reliability of systems
• Reduced maintenance costs and downtime
• Increased efficiency and productivity
• Better understanding of system behavior and performance

4. What factors should be considered when selecting a vibration sensor?

When selecting a vibration sensor, the following factors should be considered:

• Frequency range
• Sensitivity
• Dynamic range
• Environmental factors (e.g., temperature, humidity, electromagnetic interference)
• Size and weight
• Cost

5. What are some common applications of vibration sensors?

Vibration sensors are used in a wide range of applications, including:

• Condition monitoring of machines and structures
• Structural health monitoring of bridges, buildings, and other infrastructure
• Automotive testing and development
• Aerospace testing and development
• Microelectronics testing and manufacturing
• Biomedical research and diagnostics

Conclusion

Vibration sensors are essential tools for monitoring the health and performance of machines, structures, and other systems. They offer several advantages, including early fault detection, improved safety and reliability, reduced maintenance costs, and increased efficiency and productivity.

There are several types of vibration sensors available, each with its own advantages and limitations. When selecting a vibration sensor for a particular application, it is important to consider factors such as frequency range, sensitivity, dynamic range, environmental factors, size and weight, and cost.

By understanding the different types of vibration sensors and their applications, engineers and technicians can make informed decisions about the best sensor for their needs and ensure the safe and efficient operation of their systems.
