Introduction to USB-PDA

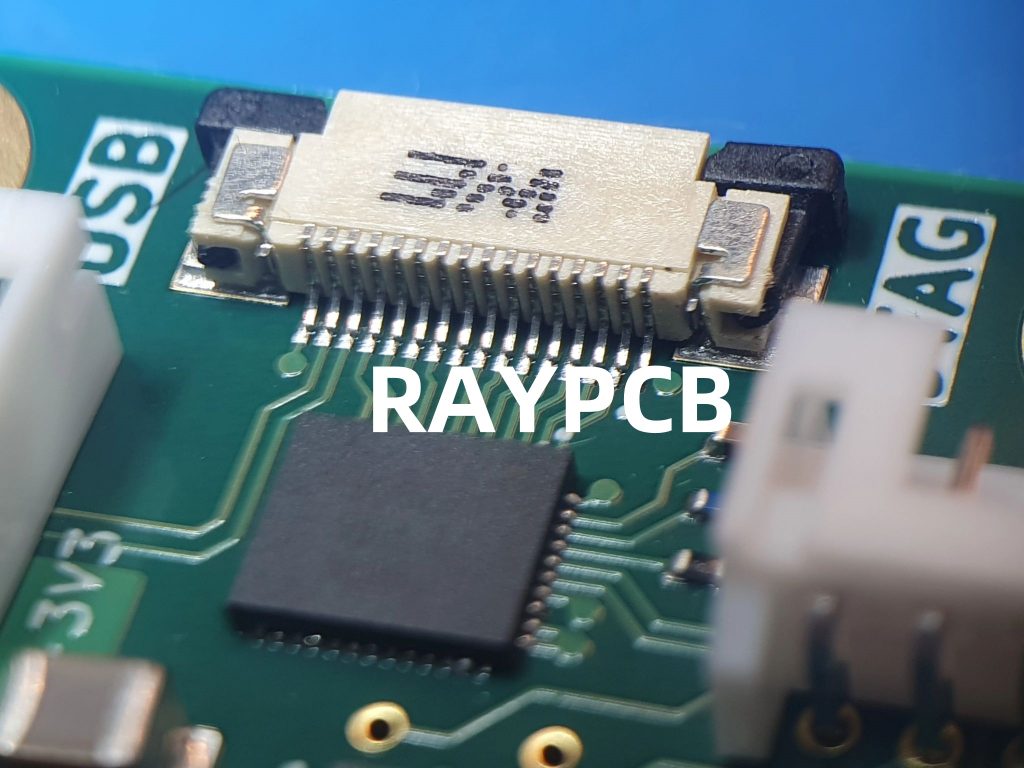

A USB-PDA, or USB Programmer and Debug Adapter, is a versatile tool used by embedded systems developers and engineers to program and debug microcontrollers and other embedded devices. It provides a convenient way to connect a host computer to a target device over USB, allowing for programming of firmware, debugging, and analysis of the system.
USB-PDAs have become increasingly popular in recent years due to their ease of use, reliability, and compatibility with a wide range of microcontrollers and development environments. They offer a cost-effective solution for programming and debugging, making them an essential tool for any embedded systems developer.
Key Features of USB-PDAs
USB-PDAs offer several key features that make them valuable for embedded systems development:
1. USB Connectivity
One of the primary advantages of USB-PDAs is their use of USB connectivity. USB (Universal Serial Bus) is a widely adopted standard for connecting devices to computers, offering high-speed data transfer and ease of use. By using USB, developers can quickly connect their target device to a host computer without the need for specialized hardware or cables.
USB-PDAs typically support USB 2.0 or higher, providing ample bandwidth for programming and debugging purposes. They may also be compatible with various USB connectors, such as USB Type-A, USB Type-C, or micro-USB, depending on the specific model and target device requirements.
2. Programming Capabilities
USB-PDAs are primarily used for programming microcontrollers and other embedded devices. They support a range of programming protocols and interfaces, such as:
- JTAG (Joint Test Action Group)
- SWD (Serial Wire Debug)
- ISP (In-System Programming)
- UART (Universal Asynchronous Receiver/Transmitter)
- I2C (Inter-Integrated Circuit)
- SPI (Serial Peripheral Interface)
These interfaces allow developers to transfer firmware or application code from the host computer to the target device’s memory, enabling them to update or modify the device’s functionality as needed.
USB-PDAs often come with software or drivers that facilitate the programming process, providing a user-friendly interface for selecting the target device, configuring programming settings, and initiating the code upload.
3. Debugging Capabilities
In addition to programming, USB-PDAs offer powerful debugging capabilities. Debugging is an essential part of embedded systems development, allowing developers to identify and fix issues in their code or hardware.
USB-PDAs support various debugging protocols, such as JTAG and SWD, which enable developers to:
- Set breakpoints and step through code
- Read and write memory locations
- Monitor variables and registers
- Analyze system behavior and performance
By using a USB-PDA, developers can gain real-time insight into their embedded system, helping them identify bugs, optimize code, and ensure proper functionality.
Many USB-PDAs integrate with popular Integrated Development Environments (IDEs) and debugging tools, such as Keil MDK, IAR Embedded Workbench, or Eclipse, providing a seamless debugging experience within the developer’s preferred development environment.
4. Compatibility and Flexibility
USB-PDAs are designed to be compatible with a wide range of microcontrollers and embedded devices. They support various architectures, such as ARM, AVR, PIC, and more, making them suitable for different projects and applications.
Additionally, USB-PDAs often offer flexible pin configurations and voltage levels, allowing them to interface with different target devices. Some USB-PDAs even provide level-shifting capabilities, enabling them to work with devices operating at different voltage levels.
This compatibility and flexibility make USB-PDAs a versatile tool that can be used across multiple projects and platforms, reducing the need for multiple programming and debugging tools.
Choosing the Right USB-PDA
When selecting a USB-PDA for your embedded systems development needs, there are several factors to consider:
1. Supported Microcontrollers and Protocols
Ensure that the USB-PDA you choose supports the microcontrollers and programming/debugging protocols used in your projects. Check the manufacturer’s specifications and compatibility list to confirm that the USB-PDA can work with your target devices.
2. Software Compatibility
Consider the software and development environments you prefer to use. Look for USB-PDAs that offer compatible drivers, software, or plugins for your chosen IDEs and debugging tools. This will ensure a smooth integration into your existing development workflow.
3. Performance and Speed
Evaluate the performance and speed of the USB-PDA, especially if you work with large codebases or complex debugging scenarios. Look for USB-PDAs with high-speed USB interfaces and efficient programming and debugging capabilities to minimize development time.
4. Reliability and Build Quality
Choose a USB-PDA from a reputable manufacturer known for producing reliable and high-quality tools. Consider factors such as the USB-PDA’s build quality, durability, and any available user reviews or testimonials.
5. Price and Budget
USB-PDAs are available at various price points, ranging from low-cost options to high-end professional tools. Determine your budget and select a USB-PDA that offers the best value for your needs. Keep in mind that investing in a reliable and feature-rich USB-PDA can save you time and effort in the long run.
Popular USB-PDA Options
There are several popular USB-PDA options available on the market, catering to different needs and budgets. Some notable examples include:
1. SEGGER J-Link
The SEGGER J-Link is a widely used USB-PDA known for its performance, reliability, and extensive device support. It offers high-speed programming and debugging capabilities and is compatible with a wide range of microcontrollers and development environments.
| Feature | SEGGER J-Link |
|---|---|
| Supported Architectures | ARM, Renesas RX, Microchip PIC32, RISC-V, and more |
| Debugging Protocols | JTAG, SWD, SWO, ETM, SPI, I2C, UART |
| USB Interface | USB 2.0 High-Speed |
| Software Compatibility | Keil MDK, IAR Embedded Workbench, GDB, Eclipse, and more |
| Unique Features | Real-time transfer (RTT), J-Flash programming software, GDB server |
2. ST-Link
ST-Link is a USB-PDA developed by STMicroelectronics specifically for their STM32 microcontroller family. It provides a cost-effective and easy-to-use solution for programming and debugging STM32 devices.
| Feature | ST-Link |
|---|---|
| Supported Architectures | STM32 microcontrollers |
| Debugging Protocols | JTAG, SWD |
| USB Interface | USB 2.0 Full-Speed |
| Software Compatibility | STM32CubeIDE, Keil MDK, IAR Embedded Workbench, and more |
| Unique Features | Built-in programmer for STM32 devices, STM32 ST-LINK Utility software |
3. Atmel-ICE
The Atmel-ICE is a USB-PDA designed for Atmel (now Microchip) AVR and SAM microcontrollers. It offers a robust set of features and is compatible with Atmel Studio, the official IDE for AVR and SAM development.
| Feature | Atmel-ICE |
|---|---|
| Supported Architectures | AVR, SAM (ARM Cortex-M) |
| Debugging Protocols | JTAG, debugWIRE, SWD, PDI, TPI, aWire |
| USB Interface | USB 2.0 High-Speed |
| Software Compatibility | Atmel Studio, Keil MDK, IAR Embedded Workbench, and more |
| Unique Features | Data Gateway Interface (DGI) for streaming data, Atmel Studio integration |
Setting Up and Using a USB-PDA
Setting up and using a USB-PDA typically involves the following steps:
- Install the necessary drivers and software provided by the USB-PDA manufacturer on your host computer.
- Connect the USB-PDA to your host computer using the appropriate USB cable.
- Connect the USB-PDA to your target device using the supported programming/debugging interface (e.g., JTAG, SWD).
- Launch your preferred IDE or debugging tool and configure it to use the USB-PDA as the programming and debugging interface.
- Set up your project, configure the necessary settings (e.g., target device, clock speed, memory layout), and start programming or debugging your embedded application.
The specific steps and configuration details may vary depending on the USB-PDA model and the development environment you are using. Refer to the manufacturer’s documentation and user guides for detailed instructions on setting up and using your particular USB-PDA.
Troubleshooting USB-PDA Issues
While USB-PDAs are generally reliable and easy to use, you may encounter issues from time to time. Here are some common problems and troubleshooting tips:
1. USB Connection Issues
- Ensure that the USB cable is securely connected to both the host computer and the USB-PDA.
- Verify that the USB drivers are properly installed on your host computer.
- Try using a different USB port or cable to rule out hardware issues.
2. Target Device Connection Issues
- Check that the target device is properly connected to the USB-PDA using the correct programming/debugging interface.
- Verify that the target device is powered on and in the appropriate mode for programming or debugging.
- Double-check the pin assignments and ensure that the connections are secure.
3. Software Configuration Issues
- Make sure that your IDE or debugging tool is properly configured to use the USB-PDA as the programming and debugging interface.
- Verify that the correct target device and settings are selected in your project configuration.
- Check for any conflicting software or drivers that may interfere with the USB-PDA’s operation.
4. Firmware Updates
- If you encounter issues with your USB-PDA, check if there are any available firmware updates from the manufacturer.
- Updating the firmware can often resolve compatibility issues or improve performance and stability.
If you continue to experience issues after troubleshooting, consult the manufacturer’s support resources, user forums, or contact their technical support team for further assistance.
FAQ
1. Can I use a USB-PDA with any microcontroller?
USB-PDAs are designed to be compatible with a wide range of microcontrollers, but not all microcontrollers are supported by every USB-PDA. It’s essential to check the manufacturer’s specifications and compatibility list to ensure that the USB-PDA you choose supports your specific target device.
2. Do I need special software to use a USB-PDA?
Most USB-PDAs come with their own software or drivers that need to be installed on your host computer. This software typically includes utilities for programming and debugging, as well as drivers to enable communication between the host computer and the target device. Some USB-PDAs also integrate with popular IDEs and debugging tools, providing a seamless development experience.
3. Can I use a USB-PDA for both programming and debugging?
Yes, most USB-PDAs support both programming and debugging functionalities. They allow you to download firmware or application code to the target device’s memory and provide debugging capabilities like setting breakpoints, stepping through code, and monitoring variables and registers.
4. Are USB-PDAs expensive?
The cost of USB-PDAs varies depending on the features, performance, and brand. There are affordable options available for hobbyists and entry-level developers, as well as high-end professional tools with advanced capabilities. The price range can span from a few dozen to several hundred dollars. It’s important to consider your specific needs and budget when selecting a USB-PDA.
5. Can I use multiple USB-PDAs simultaneously?
Yes, you can use multiple USB-PDAs simultaneously on the same host computer. This can be useful when working with multiple target devices or when collaborating with other developers. However, ensure that each USB-PDA is properly configured and connected to the correct target device to avoid conflicts or communication issues.
Conclusion
USB-PDAs are essential tools for embedded systems developers, providing a convenient and reliable way to program and debug microcontrollers and other embedded devices. With their USB connectivity, wide compatibility, and powerful features, USB-PDAs streamline the development process and help developers bring their projects to life more efficiently.
When choosing a USB-PDA, consider factors such as supported microcontrollers and protocols, software compatibility, performance, reliability, and budget. Popular options like SEGGER J-Link, ST-Link, and Atmel-ICE cater to different needs and preferences.
By understanding the capabilities and limitations of USB-PDAs, and following best practices for setup, usage, and troubleshooting, embedded systems developers can maximize the benefits of these versatile tools and accelerate their development workflows.
As technology advances and new microcontrollers and embedded devices emerge, USB-PDAs will continue to evolve and adapt, offering developers the tools they need to tackle the challenges of embedded systems development in the future.
