Solder Paste Data Preparation

Introduction to Solder Paste Preparation

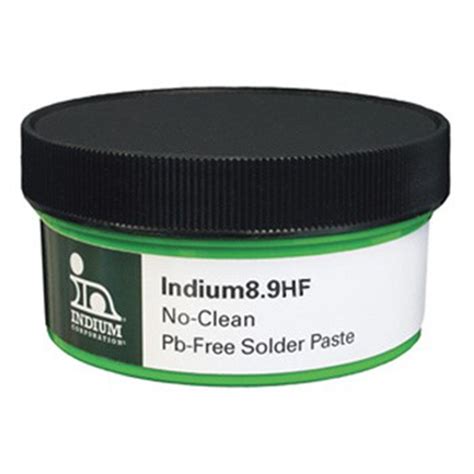

Solder paste is a crucial component in the surface mount technology (SMT) assembly process. It is a homogeneous mixture of tiny solder particles suspended in a flux medium. The primary function of solder paste is to form reliable electrical and mechanical connections between surface mount components and the printed circuit board (PCB) pads. Proper solder paste data preparation is essential to ensure the quality and reliability of the final assembled product.

In this article, we will discuss the various aspects of solder paste data preparation, including the importance of solder paste properties, the steps involved in preparing solder paste data, and the best practices to ensure optimal results.

Key Properties of Solder Paste

To understand the significance of solder paste data preparation, it is essential to know the key properties of solder paste that affect the assembly process and the final product quality. These properties include:

1. Alloy composition: The solder alloy composition determines the melting temperature, wetting behavior, and mechanical strength of the solder joints. Common solder alloys used in SMT assembly include tin-lead (SnPb) and lead-free alloys such as tin-silver-copper (SAC) and tin-bismuth (SnBi).
2. Particle size distribution: The particle size distribution of the solder paste affects its printability, slump resistance, and reflow behavior. A well-controlled particle size distribution ensures consistent printing and reliable solder joint formation.
3. Flux type and activity: The flux in the solder paste serves to remove oxides from the metal surfaces, promote wetting, and protect the solder joint from oxidation during reflow. The flux type and activity level should be selected based on the specific assembly requirements, such as the PCB Surface Finish, component metallization, and reflow profile.
4. Rheological properties: The rheological properties of solder paste, such as viscosity and thixotropy, influence its printing and dispensing behavior. Proper control of these properties ensures consistent solder paste deposition and prevents defects such as bridging and slumping.

Solder Paste Data Preparation Steps

Solder paste data preparation involves several steps to ensure that the solder paste meets the required specifications and performs optimally during the assembly process. These steps include:

1. Solder Paste Material Selection

The first step in solder paste data preparation is selecting the appropriate solder paste material based on the specific assembly requirements. Factors to consider when choosing a solder paste include:

• PCB surface finish (e.g., ENIG, OSP, HASL)
• Component metallization (e.g., tin, gold, silver)
• Reflow profile (e.g., peak temperature, time above liquidus)
• Environmental and regulatory requirements (e.g., RoHS compliance)

2. Solder Paste Printing Parameters

Once the solder paste material is selected, the next step is to determine the optimal printing parameters. These parameters include:

• Stencil design (e.g., aperture size and shape, thickness)
• Printing speed and pressure
• Squeegee type and angle
• Solder paste dispense volume

Proper selection of these parameters ensures consistent solder paste deposition and minimizes printing defects such as insufficient or excessive solder paste, bridging, and slumping.

3. Solder Paste Inspection and Quality Control

After printing, the solder paste deposits should be inspected to ensure that they meet the required specifications. Common inspection methods include:

• 2D and 3D solder paste inspection (SPI) systems
• Visual inspection using magnification or microscopy
• Measurement of solder paste volume, height, and area

Quality control measures should be implemented to monitor the solder paste printing process and identify any deviations from the specified parameters. This may involve regular checks of the stencil condition, squeegee blades, and solder paste viscosity.

4. Solder Paste Storage and Handling

Proper storage and handling of solder paste are crucial to maintain its quality and performance. Solder paste should be stored in a cool, dry environment, typically between 0°C and 10°C (32°F and 50°F), to prevent premature flux activation and solder particle oxidation. The shelf life of solder paste varies depending on the specific formulation, but it typically ranges from 3 to 6 months when stored under appropriate conditions.

When handling solder paste, it is essential to follow the manufacturer’s recommendations for thawing, mixing, and application. Solder paste should be allowed to reach room temperature before use, and it should be thoroughly mixed to ensure homogeneity. Operators should also follow proper hygiene practices, such as wearing gloves and avoiding contamination of the solder paste with foreign materials.

Best Practices for Solder Paste Data Preparation

To ensure optimal solder paste performance and assembly quality, consider the following best practices:

1. Use a solder paste that is compatible with the PCB surface finish and component metallization: Selecting a solder paste with the appropriate flux activity and alloy composition helps to promote good wetting and reliable solder joint formation.
2. Optimize the stencil design: The stencil aperture size, shape, and thickness should be tailored to the specific component package and PCB pad geometry to ensure consistent solder paste deposition.
3. Control the printing parameters: Regularly monitor and adjust the printing speed, pressure, and squeegee settings to maintain consistent solder paste deposition and minimize defects.
4. Implement a robust quality control process: Conduct regular inspections of the solder paste deposits using SPI systems or visual methods, and track the process performance using statistical process control (SPC) tools.
5. Follow proper storage and handling procedures: Store solder paste in a cool, dry environment, and follow the manufacturer’s recommendations for thawing, mixing, and application to maintain its quality and performance.

Solder Paste Data Preparation Tools and Software

Several tools and software solutions are available to assist with solder paste data preparation and optimization. These include:

1. Stencil design software: Tools such as Mentor Graphics Valor and Cadence Allegro allow users to design and optimize stencils for specific component packages and PCB layouts.
2. Solder paste inspection systems: 2D and 3D SPI systems from manufacturers such as Koh Young, CyberOptics, and Viscom provide automated inspection and measurement of solder paste deposits.
3. Statistical process control software: SPC software solutions, such as Minitab and JMP, help to monitor and analyze process performance data, identify trends, and implement corrective actions.
4. Solder paste material databases: Online databases, such as the IPC Solder Products Value Council (SPVC) database, provide information on solder paste materials, properties, and performance.

Conclusion

Solder paste data preparation is a critical aspect of the SMT assembly process, as it directly impacts the quality and reliability of the final assembled product. By understanding the key properties of solder paste, following the necessary preparation steps, and implementing best practices and tools, manufacturers can ensure optimal solder paste performance and minimize assembly defects.

As the electronics industry continues to evolve, with increasing demands for miniaturization, higher functionality, and improved reliability, the importance of solder paste data preparation will only continue to grow. By staying informed about the latest developments in solder paste technology and best practices, manufacturers can remain competitive and deliver high-quality products to their customers.

Frequently Asked Questions (FAQ)

1. What is solder paste, and why is it important in SMT assembly?
   Solder paste is a homogeneous mixture of tiny solder particles suspended in a flux medium. It is used in SMT assembly to form reliable electrical and mechanical connections between surface mount components and PCB pads. Proper solder paste preparation is crucial for ensuring the quality and reliability of the final assembled product.
2. What are the key properties of solder paste that affect the assembly process?
   The key properties of solder paste that affect the assembly process include alloy composition, particle size distribution, flux type and activity, and rheological properties. These properties influence the melting temperature, wetting behavior, printability, slump resistance, and reflow behavior of the solder paste.
3. What are the steps involved in solder paste data preparation?
   The steps involved in solder paste data preparation include solder paste material selection, determination of printing parameters, solder paste inspection and quality control, and proper storage and handling. Each step plays a critical role in ensuring optimal solder paste performance and assembly quality.
4. What are some best practices for solder paste data preparation?
   Some best practices for solder paste data preparation include selecting a compatible solder paste for the specific PCB surface finish and component metallization, optimizing the stencil design, controlling the printing parameters, implementing a robust quality control process, and following proper storage and handling procedures.
5. What tools and software solutions are available for solder paste data preparation?
   Several tools and software solutions are available to assist with solder paste data preparation, including stencil design software, solder paste inspection systems, statistical process control software, and solder paste material databases. These tools help to optimize the solder paste preparation process, monitor performance, and ensure consistent results.
